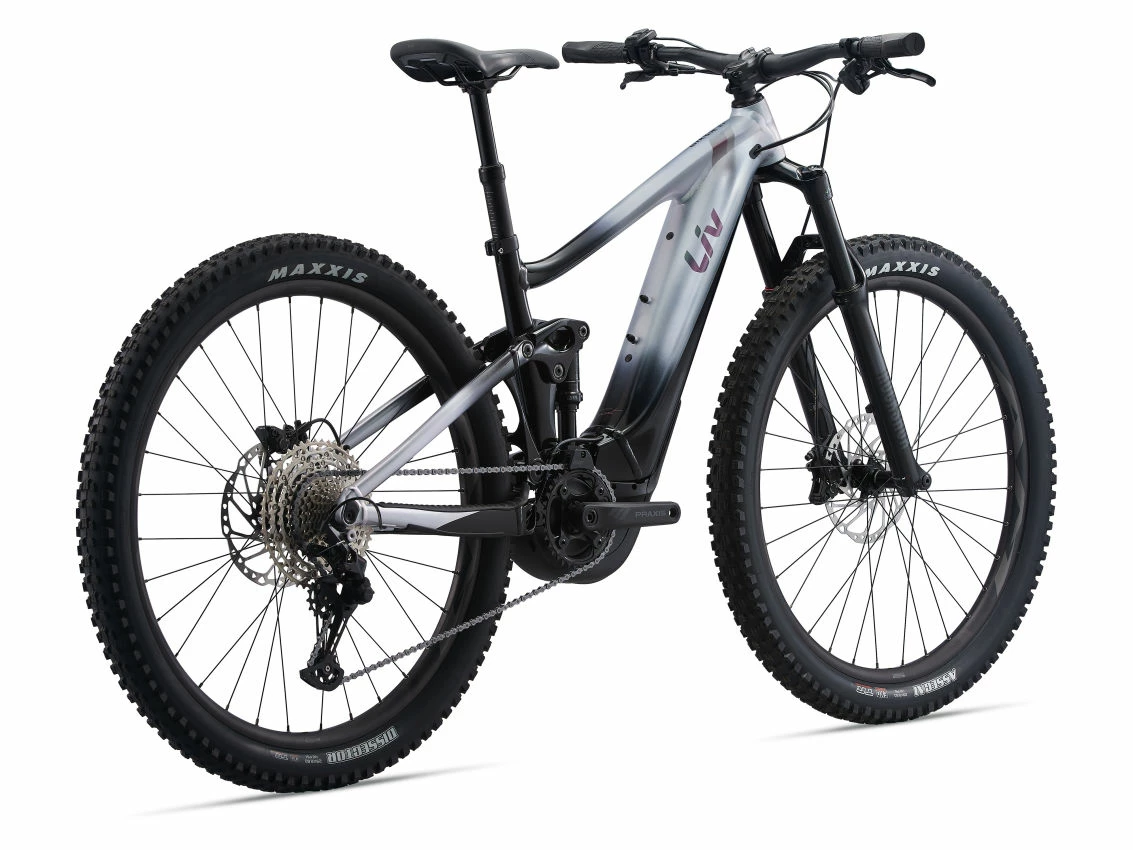

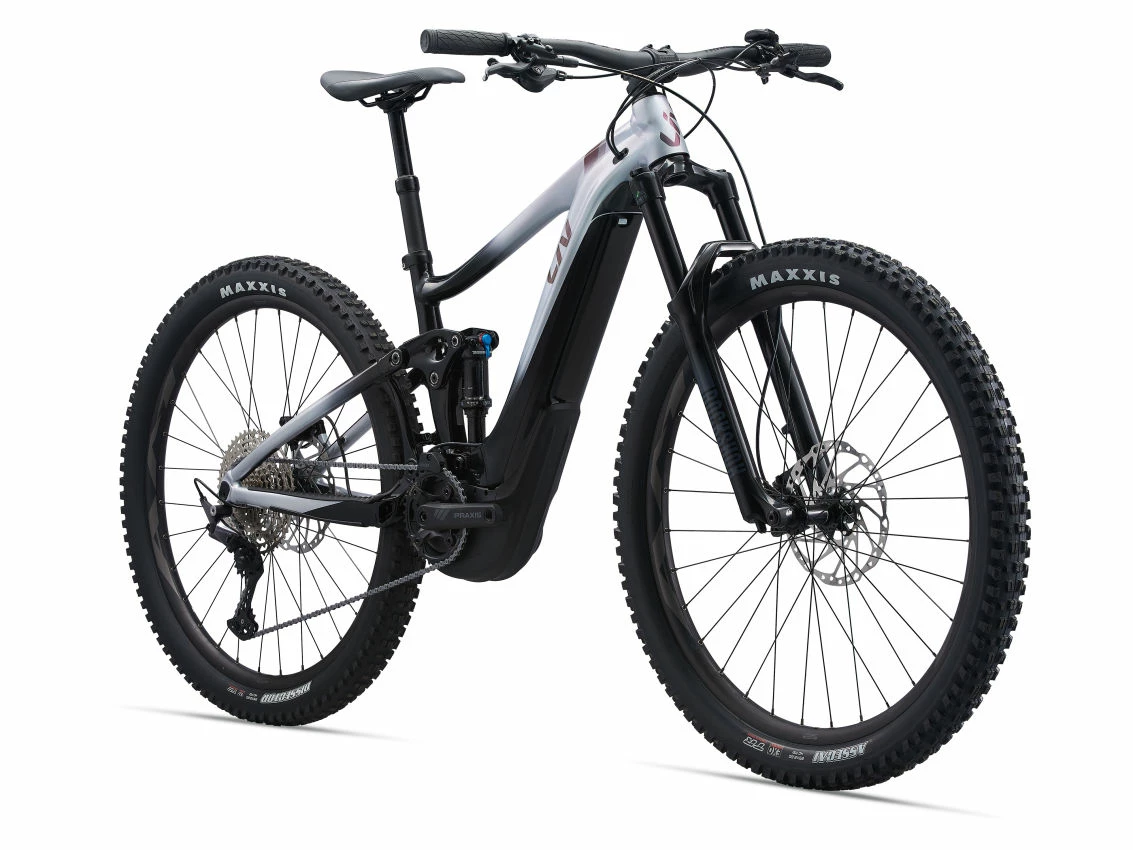

LIV INTRIGUE X E+ 3 2022 – Monvelo.com

• Cadre, fourche

Cadre: ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, ‘Boost’ 148x12QR, ISS

Fourche: Rock Shox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15×110 Boost, Maxle Stealth, e-MTB optimized

---

• Moteur, batterie

Moteur: SyncDrive Pro,80Nm, Powered by YAMAHA

Batterie: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible

Ecran: RideControl Ergo

---

• Groupe

Dérailleur arrière: Shimano Deore 12-speed

Manettes: Shimano Deore

Freins: Shimano BR-M420, 4-piston, hydraulic disc, 203mm

Cassette: Shimano CS-M6100-12, 10-51T, 12-speed

Pédalier: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS/S:160, M:165, L:170)

---

• Périphériques

Cintre: Giant Contact 35 Trail, 35×760~780mm (XS-S: 760 / M-L: 780)

Potence: Giant Contact SL 35

Tige de selle: Giant Contact Switch, dropper, 30,9mm (XS-S: 100, M:125, L:150)

Selle: Liv Sylvia E+

---

• Pneus, roues

Pneus: Maxxis Assegai 29×2.6″ foldable, Tubeless, EXO [F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+ [R] (XS: 27.5+ / S-L: 29)

Roues: Giant AM 29 / 27.5+, Tubeless ready, 30mm inner width

---
